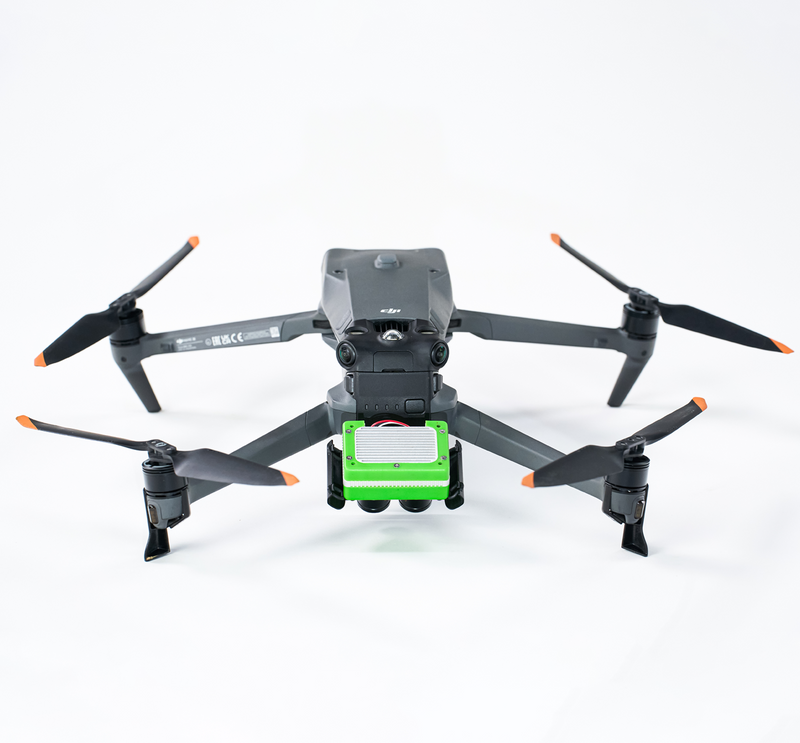

Double 4K Mavic

$3,000.00

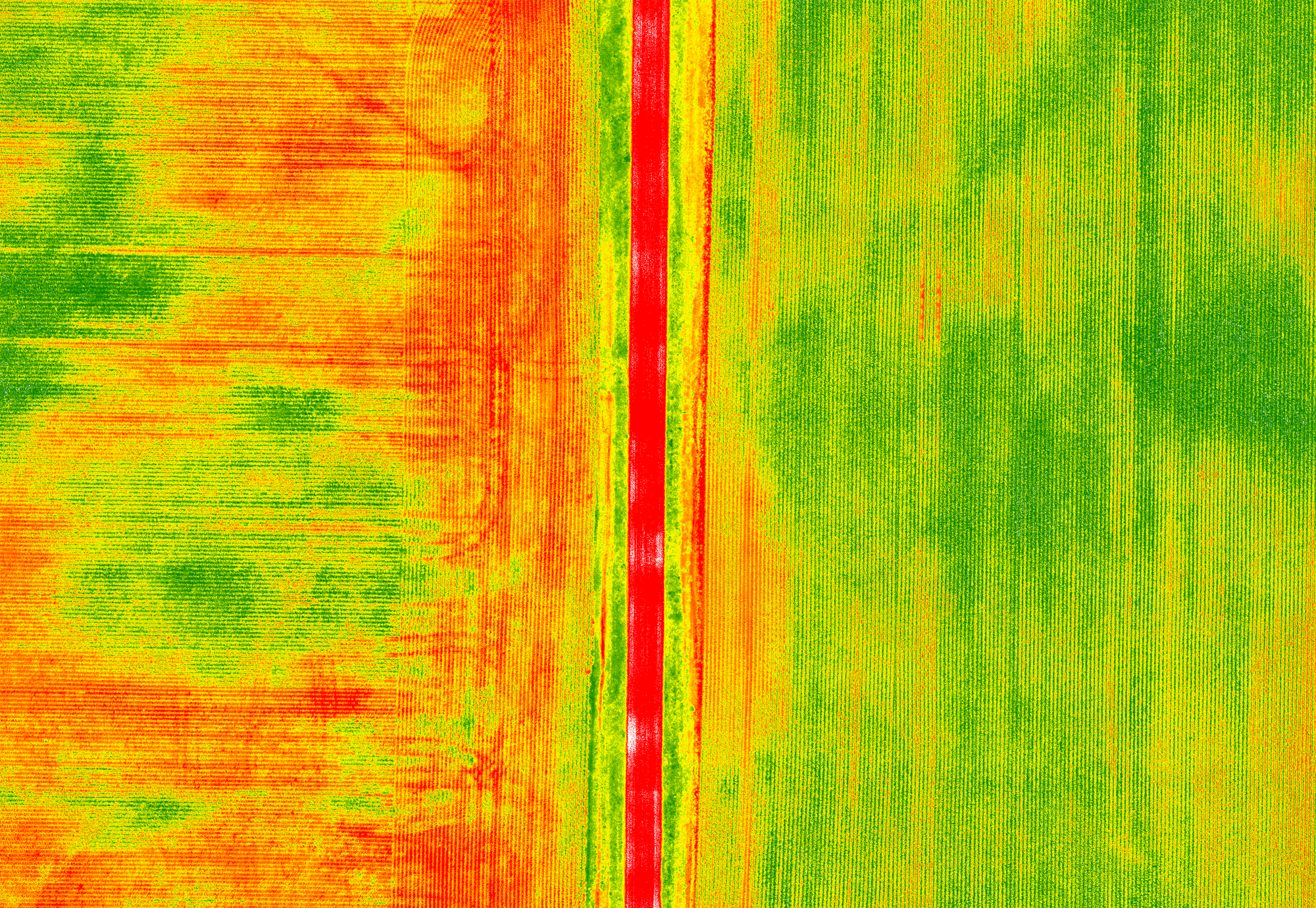

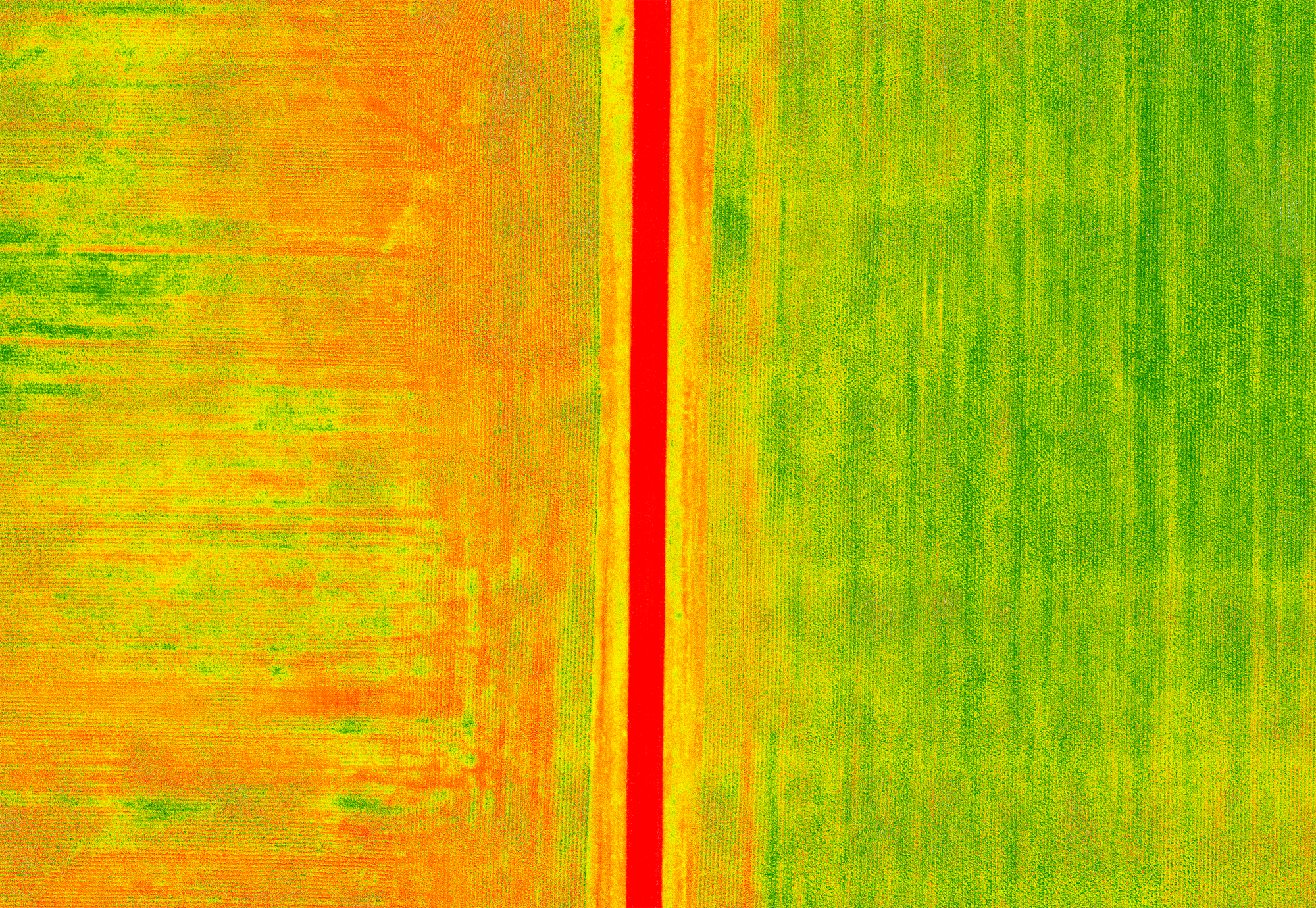

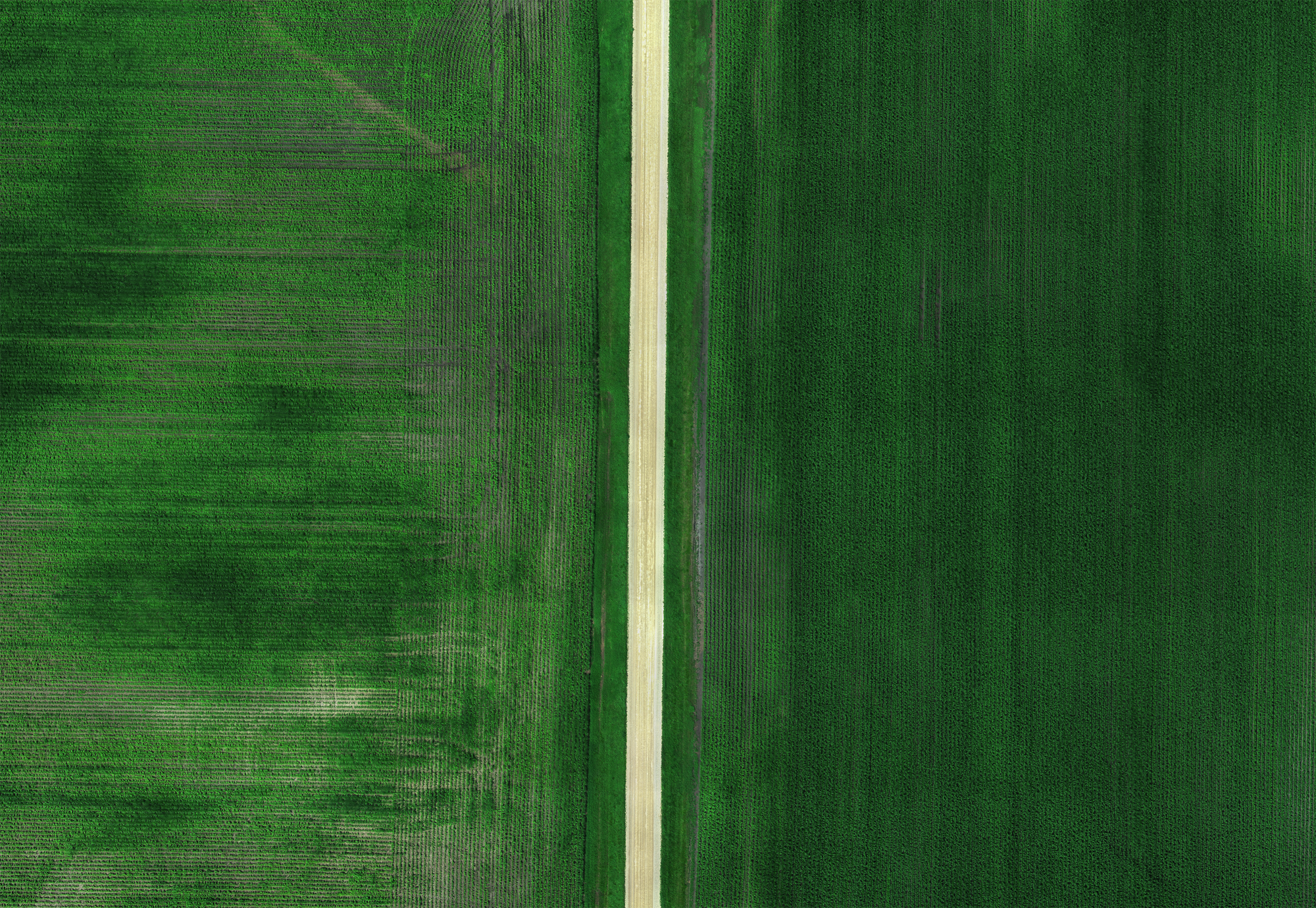

The Sentera Double 4K sensor, designed for the DJI Mavic Series, provides precise and versatile solutions for agricultural professionals. This system simultaneously captures high-resolution RGB imagery and critical plant health indices (NDVI/NDRE or 5-Band Multispectral, depending on Sensor Variant), enabling efficient and actionable insights for crop scouting and vegetation analysis.

With this integration, users can scout and diagnose field conditions more effectively while gaining a visual and analytical understanding of their crops. Seamlessly integrating with Sentera’s FieldAgent software, the Double 4K offers a streamlined workflow for faster decision-making in the field, providing an efficient, cost-effective solution for agronomists, growers, and crop consultants.

Note: Mavic drones must be sent to us for sensor mounting.

Technical Specifications

Resolution	4000px by 3000px
GSD @ 200ft	1.8cm
Shutter Type	Electronic Rolling Shutter
Frame Rate	2 FPS (.5s)
Image Format	JPEG
Spectral Bands	Double 4K Variant Dependent NDVI: Red: 625nm x 100nm NIR: 850nm x 40nm NDRE: Red Edge: 720nm x 40nm NIR: 840nm x 20nm 5-Band Multispectral: Blue: 446nm x 60nm Green: 548nm x 45nm Red: 650nm x 70nm Red Edge: 720 nm x 40nm NIR: 840nm x 20nm
Storage	64GB SD Card (Standard and Removable)
Compatible Drones	DJI Mavic 3 Enterprise DJI Mavic 2 pro
Supported Protocols	Compatible with PIXHAWK Autopilot and MAVLink- Based Systems
Interfaces	Ethernet, Serial/UART, USB 3.0, I2C, GPIO
Power Input	6 - 26V
Power Consumption	8W Typical / 12W Maximum
Weight (sensor only)	80g
