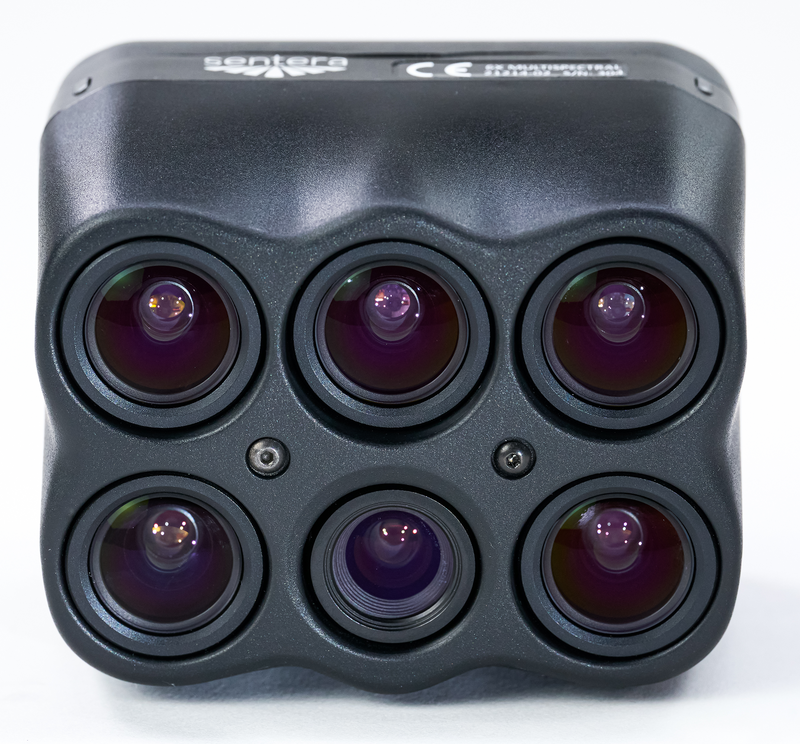

6X Multispectral OEM
6X Multispectral OEM
Roll over image to zoom in
Sentera

6X Multispectral Sensor

$13,950.00

The 6X captures synchronized, radiometric multispectral imagery at 3cm GSD and high-resolution RGB imagery at 1cm GSD, suitable for advanced analytics, all in a single sensor and flight session.



Its ultra-lightweight, gimballed design, high capture rate, and 512GB internal SSD storage maximize productivity and efficiency. Ideal for advanced analytics, it seamlessly integrates data into common software platforms, empowering agronomists, researchers, and industry professionals to make informed decisions based on precise and accurate data.



Kit Contents depend on your choice of compatible drone. Select your drone from the drop down to choose the correct gimbal for your system. 6X Multispectral is also available in its OEM variant without a gimbal.



Available Gimbals include:

  • DJI Skyport for the DJI Matrice Series.
  • Smart Dovetail for Freefly Astro and Inspired Flight IF800 and IF1200.
  • Gremsy Hyper Quick for custom integrations.

What's in the Box

  • 6X Sensor & Gimbal
  • Incident Light Sensor & GPS Module
  • Calibrated Reflectance Panel
  • Hard Case with Custom Foam
  • External Power Supply
  • 10ft USB-C to USB-A Cable
  • Right Angle USB-C Adapter
  • USB-C to USB-C Cable
  • Light Sensor Mounting Hardware

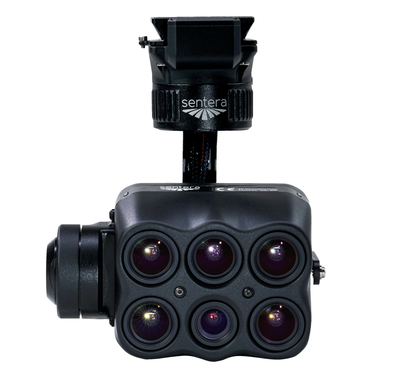

6X Sensor & Gimbal (Smart Dovetail Shown)
6X Sensor & Gimbal (Smart Dovetail Shown)
Incident Light Sensor & GPS Module
Incident Light Sensor & GPS Module
Calibrated Reflectance Panel
Calibrated Reflectance Panel

Technical Specifications

Resolution

5184px by 3888px (RGB)
2048px by 1536px (Multispectral)
GSD @ 200ft

0.4in (1.0cm) RGB
1.0in (2.6cm) Multispectral
Shutter Type

Electronic Rolling Shutter (RGB)
Global (Multispectral)
Frame Rate 5 FPS (0.2s)
Image Format

8-bit JPEG (RGB)
12-bit TIFF (Multispectral)
Spectral Bands

Blue: 475nm CWL x 30nm
Green: 550nm CWL x 20nm
Red: 670nm CWL x 30nm
Red Edge: 715nm CWL x 10nm
NIR: 840nm CWL x 20nm
RGB: IR cut 650nm
Storage 512 GB Internal SSD
Compatible Drones

DJI: Matrice Series
Inspired Flight: IF800 Tomcat & IF1200
Freefly: Astro
Custom Integration (Gremsy Hyper Quick)
Supported Protocols DJI, MAVlink V1 & V2, Custom
Interfaces USB-C 3.0, Gigabit Ethernet, PPS, Serial, Discrete I/O
Power Input 10.5 - 26V
Power Consumption 15W Typical, 18W Max
Weight (sensor only) 280g
Weight (with gimbals)

Skyport: 495g
Smart Dovetail: 515g
Gremsy Hyper Quick: 490g
ILS adds 58g to total

Features

  • NDAA and Blue UAS Compliant
  • Five 3.2MP global shutter multispectral imagers and one 20MP RGB imager
  • Synchronized image capture for all channels; supports rig processing
  • Full metadata tagging with geolocation and image characteristics
  • Open and standardized data formats
  • Incident light sensor & calibrated reflectance panel included

Use Cases

  • Mapping: Multispectral, RGB, DSM/Elevation
  • Residue cover, carbon monitoring, and conservation practice verification
  • Canopy development & senescence detection
  • Crop health, damage, disease detection, nutrient status, and stress
  • Stand count, emergence, and seed vigor
  • Weed pressure and herbicide efficacy
  • Leaf area index, plant growth, flowering, growth stage, plant size, uniformity, and biomass monitoring

Downloads & Resources

Compare Data Products

One flight, multiple analytics

View all 6X Multispectral analytics

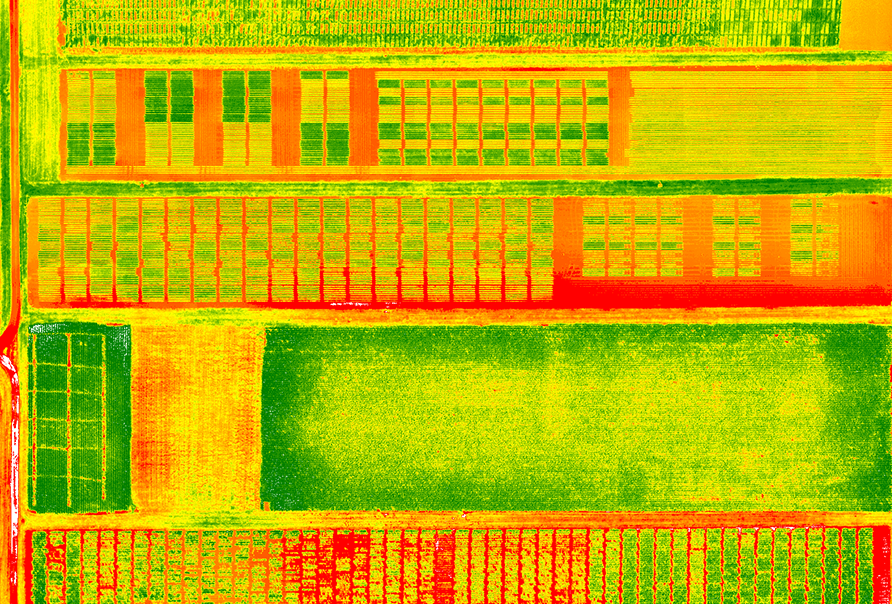

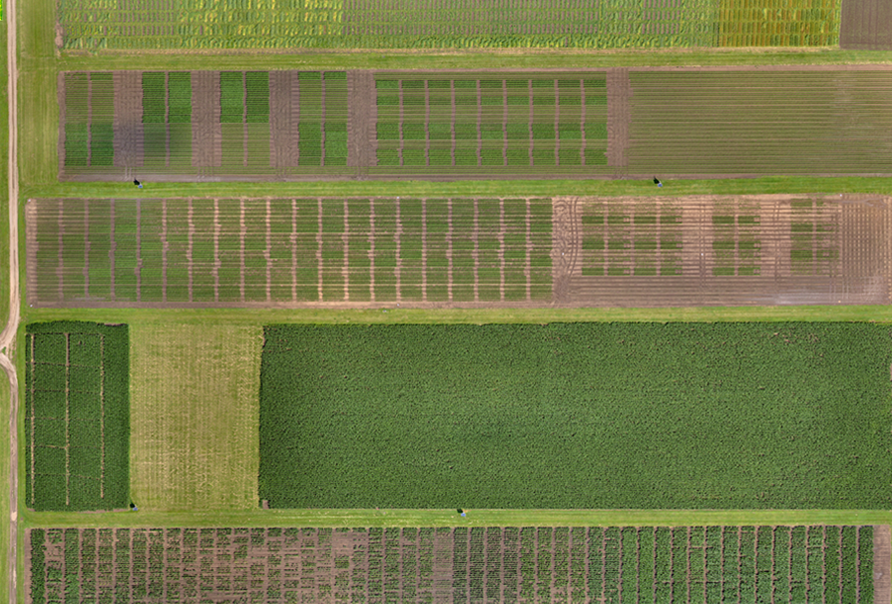

NDVI NDVI RGB RGB

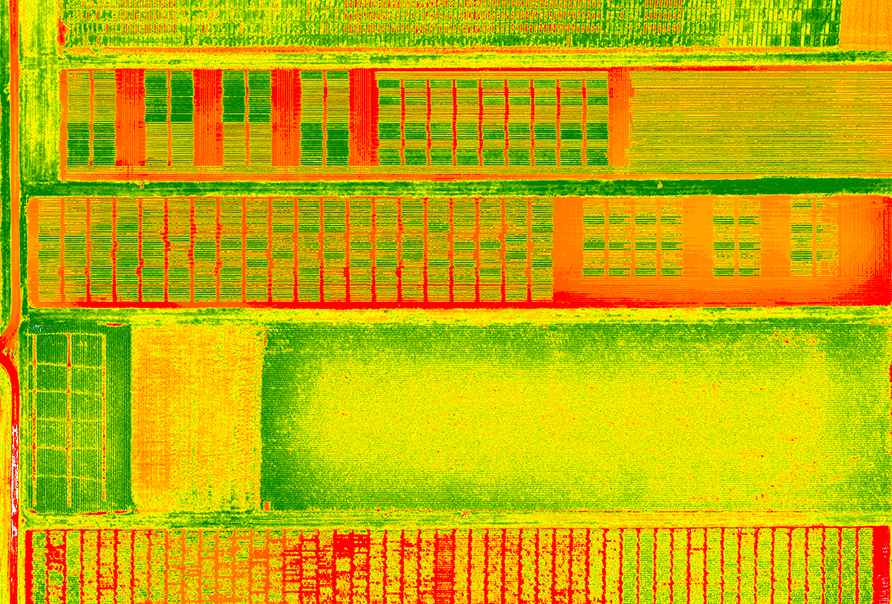

NDRE NDRE RGB RGB

Download sample datasets for the 6X Sensor Series

6X Thermal Pro

6X Thermal Pro - Research Plots

Flight Specifications:

• Aircraft: Freefly Astro
• GSD:
1.0in / 2.6cm – Multispectral
0.4in / 1.0cm – RGB
3.4in / 8.75cm – LWIR
• Altitude: 200ft / 60m
• Overlap: 75%
• RTK: No

Visit Download Page >

6X Thermal Pro - Corn Fields

Flight Specifications:

• Aircraft: IF800
• GSD:
1.0in / 2.6cm – Multispectral
0.4in / 1.0cm – RGB
3.4in / 8.75cm – LWIR
• Altitude: 200ft / 60m
• Overlap: 75%
• RTK: No

Visit Download Page >

6X Thermal

6X Thermal - Industrial

Flight Specifications:

• Aircraft: Freefly Astro
• GSD:
1.0in / 2.6cm – Multispectral
0.4in / 1.0cm – RGB
6.9in / 17.5cm – LWIR
• Altitude: 200ft / 60m
• Overlap: 75%
• RTK: No

Visit Download Page >

6X Thermal - Research Plots

Flight Specifications:

• Aircraft: M300
• GSD:
2.0 in / 5.2cm – Multispectral
0.8in / 2.0cm – RGB
13.8in/35.0cm – LWIR
• Altitude: 400ft/120m
• Overlap: 75%
• RTK: No

Visit Download Page >

6X Multispectral

6X Multispectral - Research Plots

Flight Specifications:

• Aircraft: DJI M300
• GSD:
0.62in / 1.58cm – Multispectral
0.24in / 0.61cm – RGB
• Altitude: 120ft / 36.5m
• Overlap: 75%
• RTK: No

Visit Download Page >

6X Multispectral - Corn Fields

Flight Specifications:

• Aircraft: Freefly Astro
• GSD:
2.0 in / 5.2cm – Multispectral
0.8in / 2.0cm – RGB
• Altitude: 400ft / 120m
• Overlap: 70%
• RTK: No

Visit Download Page >

Support & Resources

Get the most out of your 6X Multispectral with our comprehensive guides.

Quick Start Guide

Everything you need to get your sensor in the air quickly & safely.

View Guide →

Installation

Step-by-step instructions for mounting and connecting your sensor.

View Guide →

Operation

Learn how to capture data with your sensor.

View Guide →

Data Offload

Best practices for transferring data from the sensor to your computer.

View Guide →

Configuration & Settings

Learn how to optimize camera settings for your specific workflow and mission requirements.

View Guide →

Integration Information

Technical details for integrating with drones and software.

View Guide →
Case Study Cover

Why Capture Rate Matters

Curious about how the 6X Sensor Series optimizes flight efficiency? Download our white paper to learn why a faster capture rate matters for effective drone operations. See how the 6X Series—featuring both multispectral and thermal options—helps you achieve greater area coverage per flight, supported by insights into GSD, overlap, and allowable ground speed.
